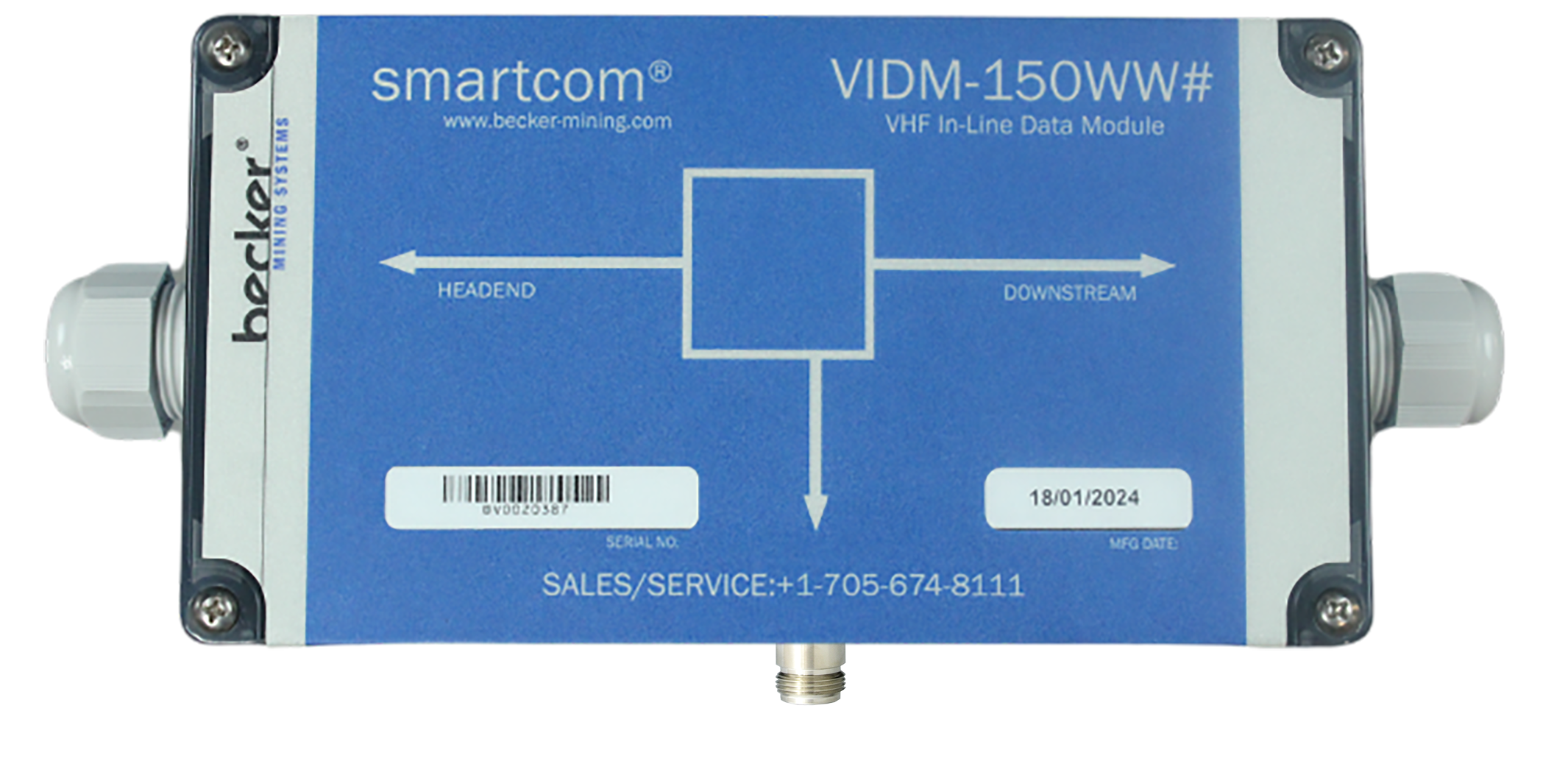

VIDM-150WW# VHF In-Line Data Module
Becker Mining Systems smartcom® 150 In-Line Data Module (UIDM) connects to the Leaky Feeder network with low main line loss to provide serial connection to an on-board serial (UART) device.
Serial data rates from 2400-115200 are supported. The connected serial device is powered through the IDM and one external antenna port is provided for tag reader functionality.
The smartcom® 150 In-Line Data Module VIDM-150WW# works in conjunction with the Surface Data Module VSDM-150WW# to provide an Ethernet connection at the head end.
2 year component & workmanship warranty.
- Connects to VHF Leaky Feeder network with low mainline loss <2 dB
- Line powered (6-36 Vdc)
- Serial connection over Leaky Feeder
- Powers on-board serial device
- Dedicated RF channel
- External antenna port
