PDS4.0 SOLUTION
Becker has been a key player in advanced real time location systems (RTLS) for underground operations since the late 1990’s. Our RFID technology has been deployed at customers all over the world and continues to fulfil the requirements of EMESRT Level7 systems.
The new PDS4.0 has been developed to fulfil the even stricter regulations for Level9 systems set forth by EMESRT.
- Collision Avoidance between system participants (Personnel and machinery)
- Customisable detection zone ranges
- Relay, GPIO and CAN bus vehicle interfacing
- System self diagnostics ensuring safe operation
- Ergonomic Operator alert with event logging
- WiFi interface for data transfer
Product certificates
This product is certified for:
PDS4.0 SOLUTION: Product inquiry
Vehicle to Person & Vehicle to Vehicle
PDS4.0 Overview
- Collision Avoidance between system participants (Personnel and machinery)
- Customisable detection zone ranges
- Relay, GPIO and CAN bus vehicle interfacing
- System self diagnostics ensuring safe operation
- Ergonomic Operator alert with event logging
- WiFi interface for data transfer
SYSTEM OPERATION
The Proximity Detection System (PDS4.0) is designed to prevent accidents between machines and personnel especially in underground environments. It alarms machine operators in case of potentially dangerous situations. It provides an early warning indication that alerts the machine operator of the presence and number of personnel and vehicles in the machine's vicinity. If the safe distance between machines or between machines and workers becomes to small, the systems alerts all participants and ultimatelly initiates a full stop of the machine.
The PDS4.0 facilitates bi-directional notification and alert messaging against potential collisions between the following:
- Vehicle to Person: Warns operator and interacts with vehicle in case of person in close proximity.
- Vehicle to Vehicle: Warns operators and interacts with vehicle in case of vehicles in close proximity.
PDT-0101 - PROXIMITY DETECTION TAG
The proximity detection tag PDT-0101 is a self powered personnel tag to be worn by every worker. It is the counter part for the PDS4.0 Master Unit mounted on every moving machine. The PDT-0101 is not only a tag but also a way to communicate with PDS4.0 master units. The PDT-0101 is the only separate tag that is needed. The PDS4.0 master units act as tags themselves - no need for an additional tag on a machine or vehicle.

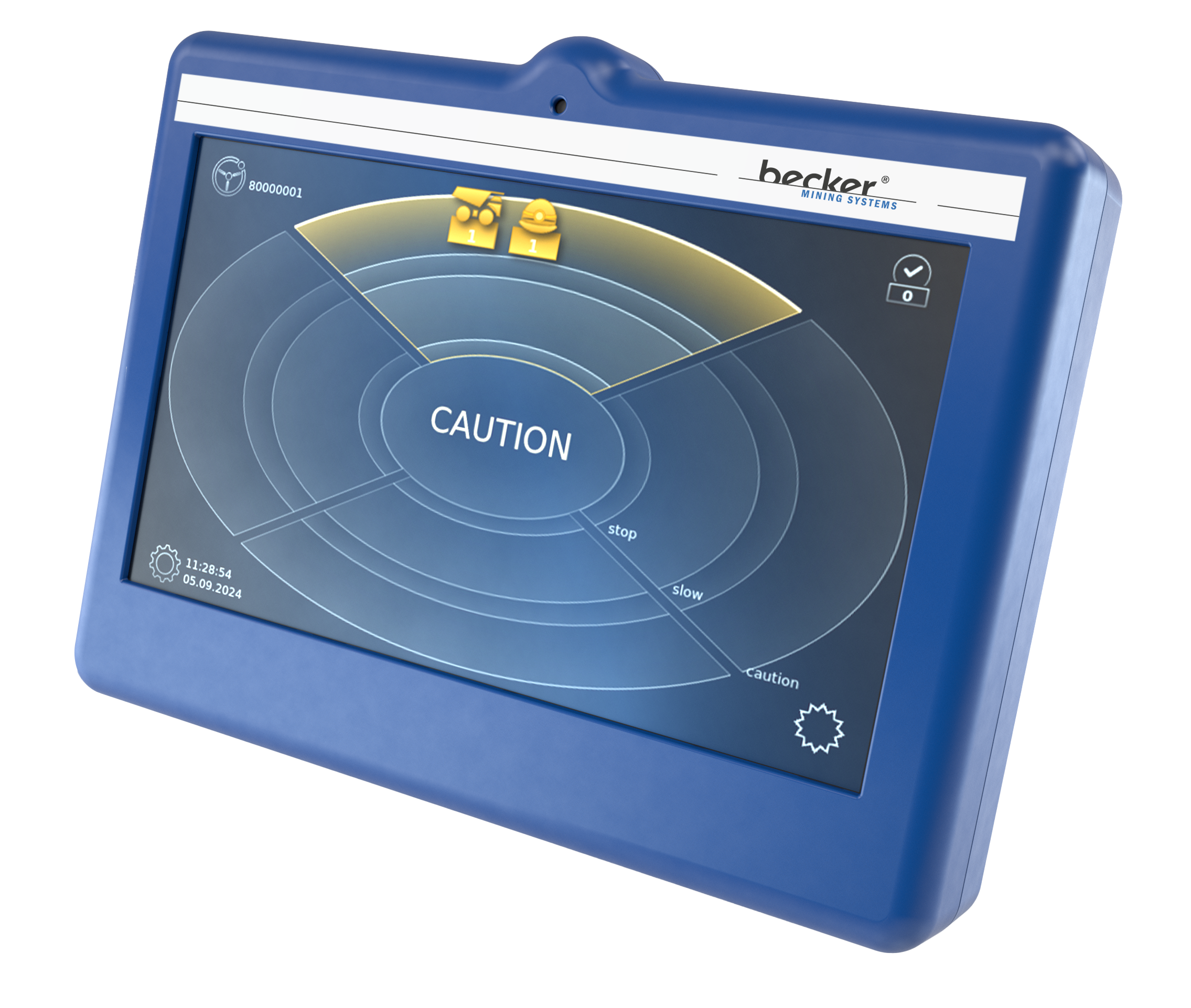

OMI - OPERATOR MACHINE INTERFACE
The Operator Machine Interface (OMI) is a 7" touch screen interface unit for the machine or vehicle operator. The OMI is mounted inside the operator cabin or near a typical workplace on any machine. It is an IP67 device that is connected to the PDS4.0 main unit, which is the central processing unit between the driver and the multiple detection sensors mounted around the machine or vehicle.
PDS4.0 easily integrates into existing systems and offers a user-friendly interface that can be operated effortlessly by any miner. Thanks to its integration with our SCADA software, SmartFlow, PDS4.0 offers comprehensive control and monitoring capabilities, while also being accessible from anywhere via TCP/IP, RJ45, Fibre, WiFi, and LTE—whether through control units, PC, or remotely via smartphones and tablets.
It reports all critical information on scenarios, improving operational safety and awareness.
PDS4.0 is flexible and scalable, making it suitable for use in both small and large mining operations. We are the only provider offering Vehicle Kits specifically tailored to the vehicles and their operational environments, which can be customized and expanded at any time. And with regular updates and expansion capabilities, your system will always stay up-to-date.. The installation is simple ensuring a low impact during the installation period.. Integrated self-diagnostics reduce overall maintenance.
The PDS4.0 system was designed with a focus on various scenarios to ensure maximum safety and efficiency in mining environments:
- Operator Log-in: The system enables secure authentication of operators, ensuring that only authorized personnel have access and control.
- Passenger Management: PDS4.0 supports the management of passengers in vehicles, ensuring that only authorized individuals are transported and their safety is maintained.
- Bypassing Pedestrians: Pedestrian safety is a key feature of the system. It detects pedestrians near vehicles and helps prevent accidents by issuing warnings or stopping the vehicle.
- Bypassing Vehicles: The system can detect nearby vehicles and avoid them, preventing collisions and hazardous situations.
- Area Restrictions and Object Protection: PDS4.0 monitors designated areas and protects sensitive zones and valuable assets from unauthorized access or accidental damage.
- Maintenance Area Utilization: In maintenance zones, the system ensures adherence to safety protocols by monitoring the movement of people and vehicles, supporting the safe execution of maintenance activities.
With these features, PDS4.0 ensures smooth and safe operations in complex work environments.
The scalable system is suitable for all customer applications - especially in underground environments. Our specially developed antennas can cover the entire WiFi spectrum and thus quickly determine the exact position of the remote station.
The number and orientation of the antennas allow for different combinations of conditions to ensure the safe operation at any scale of vehicle. The system can be adjusted to the specific use case, such as the direction and volume of the vehicle or machine.
