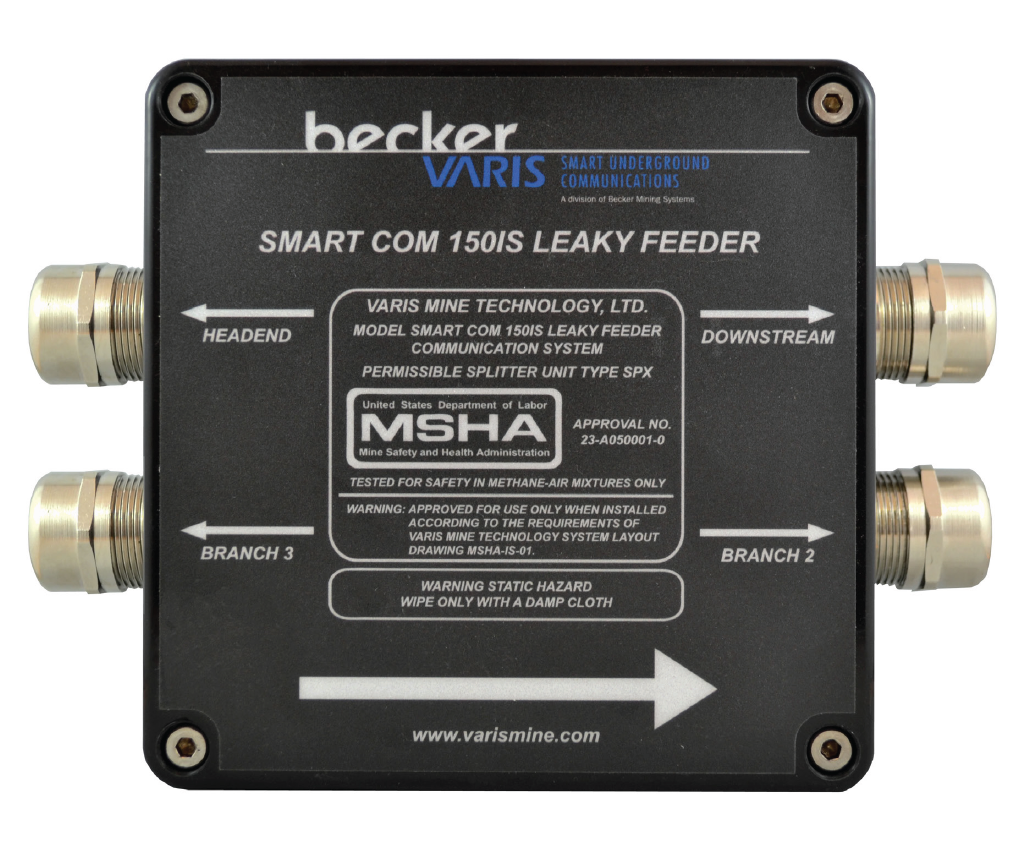

RIS-SP3 VHF IS Three-Way Splitter
Becker Mining Systems three-way splitters enable branching of Leaky Feeder cable in a smartcom® 150IS system.
The RIS-SP3 is a fully functional VHF splitter for the frequencies 10-200 MHz.
Each branch has jumpers to select its mode of operation:
Terminate: 75 Ω Termination.
No DC: Blocks DC voltage to/from branch.
Normal: Passes RF and DC.
The layout rules for smartcom® 150IS systems can be found in the latest version of drawing MSHA-IS-01.
- Intrinsically Safe MSHA Certified
- RF Branching off Leaky Feeder Cable
- DC Blocking and Termination Selection on each Branch via Jumper
- 75 Ohm Impedance
Product certificates
This product is certified for:
